Inline Depaneling Router
R30U
Home > Product > Inline Router
Inline Under Cut
Depaneling Router
The Martintrier R30U is an advanced under-cut inline PCB depaneling machine. This machine eliminates the need for specific jigs, allowing for handling PCBs with a robotic gripper. It is perfect for high-mix environments and a variety of product cases. The unloading location can be configured as flat belt conveyor, pallet/ tray conveyor or customer specific solutions. Additionally, it features cutting point checking and cutting edge compensation through optical inspection, providing an extra layer of accuracy and reliability in operation.
Feature
Bottom Cutter

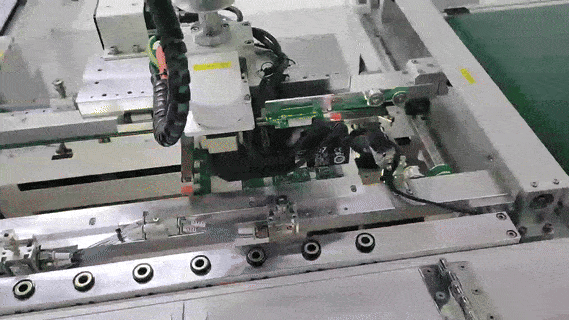

The PCB is gripped by the upper gripper and cut by the underside cutter. No jig (fixture )is required.
Image Orientation Program
PCB is scanned by CCD camera and the fiducial mark and cutting path is just teach on the PCB image
Cutting Edge Compensation
When one segment reaches limit, it switches to another segment to continue
Gripper PCB Transfer
PCB is transferred by Gripper
Routing Quality Inspection
An advanced CCD camera to automatically detect the cutting point quality after cutting
Auto Cutter Exchange
Cutter is changed at station when it reaches limited.
Specification
Working Mode
Alignment
Maximum Panel Size
Cutting Inspection
Repeatability
Clearance
Dimension
Inline Undercut
High Resolution CCD
400 x 400mm
Optional Cutting Edge Inspection and Compensation
+/-0.02mm
40mm Or Specify
1822 x 1853 x 1676mm
Layout
